Overhangs and bridges are where an FDM printer earns its keep—or shows its limits. This guide explains the physics and the practical settings that keep these features clean, from cooling and speed to supports and material choice.
Why Overhangs and Bridges Fail
When a layer is printed over air, it needs time to cool and harden before the nozzle returns. Without this, the material sags, curls or droops. Two culprits dominate: insufficient cooling and too much heat in the previous layer.
Overhangs vs. bridges
- Overhang: layers extend beyond the layer below at an angle. The steeper the angle, the more each layer must self-support.
- Bridge: a horizontal span from one support to another, completely unsupported in the middle.
Key Settings That Help
| Setting | Recommended | Why |
|---|---|---|
| Cooling fan | Max for PLA/PETG | Fast layer setting prevents sag |
| Print speed | Slower for bridges | More time for each layer to cool |
| Layer height | Lower bridges | Smaller unsupported cross-section |
| Overhang angle | <45° without supports | Self-supporting geometry |
| Bridge flow | Slightly reduced | Prevents over-extrusion droop |
Cooling is the star
Point the part-cooling fan at the print zone and ramp it up after the first few layers. For PLA and PETG, run the fan near 100% on bridges. ABS prefers little or no fan to avoid warping, so compensate with smaller bridges and supports instead.
Support Options
- Tree supports – less material, easier removal, good for organic shapes.
- Line supports – strong but harder to remove.
- Support interface – a dense top layer under bridges that peels cleanly away.
- Optimize orientation – tilt the model so steep overhangs become gentle or vertical instead.
Material Recommendations
The right filament makes bridging far easier:

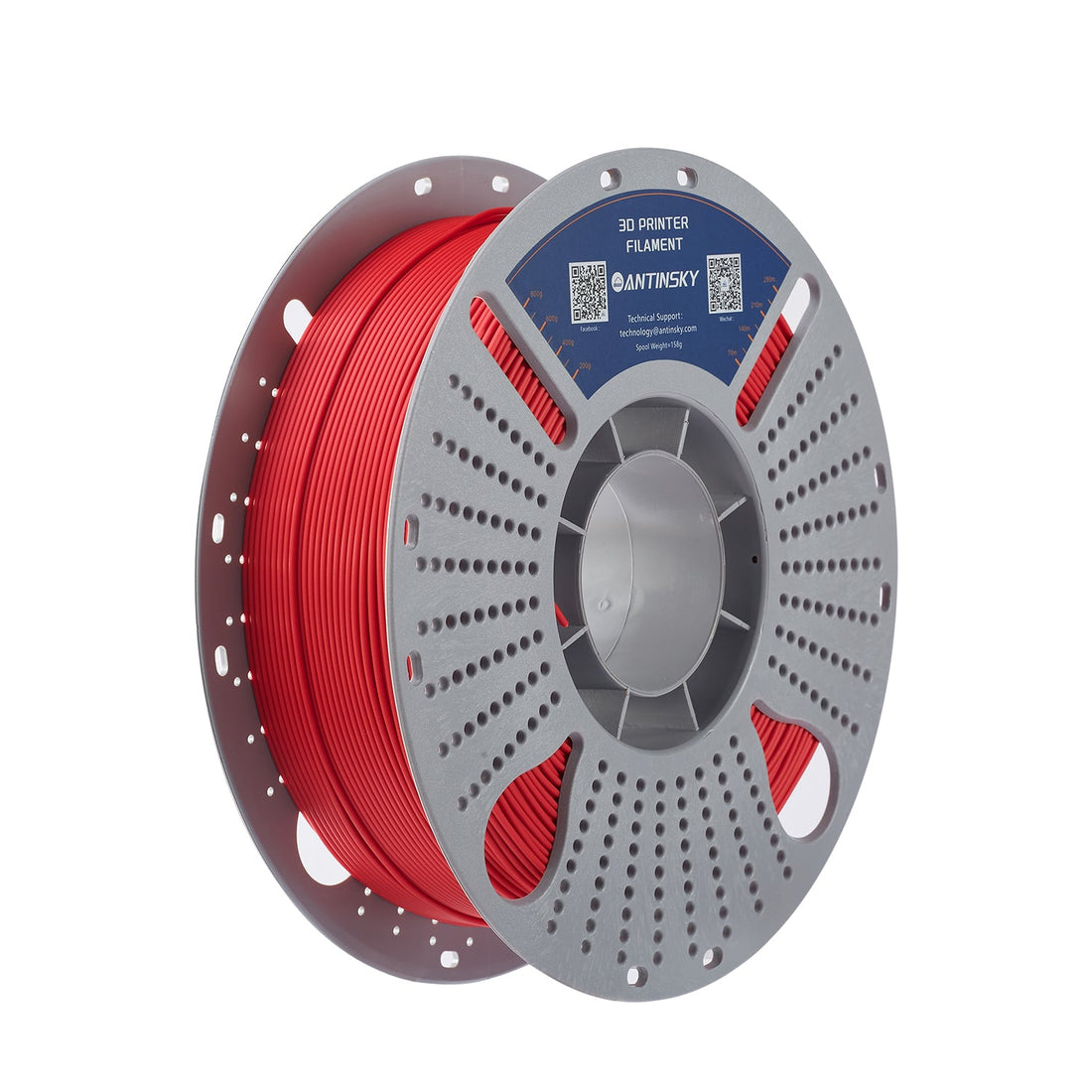

- PLA+ – excellent bridging and overhang behavior; forgiving with high cooling.
- PETG – good strength but stringier; use slightly higher bridge speeds and increased cooling.
- ABS – tricky with overhangs due to warping; rely on supports and an enclosed chamber.
- TPU – flexible, sags easily; keep overhangs minimal and bridges short.
Fast Diagnostic Flow
- Sagging bridge → raise cooling, slow speed, lower layer height.
- Rough overhang → reduce overhang angle, add supports or tree supports.
- Drooping ends → reduce bridge flow slightly.
- Grinding at corners → check that the fan is actually on and duct aligned.
Conclusion
Clean overhangs and bridges come down to cooling, speed and geometry. Control the fan, tune the per-material settings, and rely on proven filament like PLA+—the differences will be visible on the very next print.
