Resin 3D Printing with LCD/MSLA: A Complete Beginner-to-Intermediate Guide
Resin 3D printing using LCD (MSLA) technology has become the go-to choice for makers who demand high detail, smooth surface finishes, and precision. Whether you're printing miniatures, jewelry patterns, dental models, or functional prototypes, understanding the fundamentals will save you time, resin, and frustration.
How LCD/MSLA Printing Works
Unlike FDM printers that melt and extrude filament, LCD printers cure liquid photopolymer resin layer by layer using a UV light source. A monochrome LCD screen acts as a mask, selectively blocking or allowing UV light to pass through to cure specific pixels. Key advantages include:
- Higher resolution — LCD screens can achieve XY resolutions as fine as 28-34 microns
- Smoother surfaces — No visible layer lines in Z-direction on curved surfaces
- Faster curing — Monochrome LCDs last longer and cure faster than older RGB screens
Key Settings for Great Resin Prints
| Parameter | Standard Resin | Tough/ABS-Like | Castable Resin |
|---|---|---|---|
| Layer Height | 0.05mm | 0.05-0.1mm | 0.025-0.05mm |
| Bottom Exposure | 30-40s | 35-50s | 35-45s |
| Normal Exposure | 2-3s | 2.5-4s | 1.5-2.5s |
| Lift Speed | 40-60 mm/min | 30-50 mm/min | 40-60 mm/min |
Must-Know Tips for Perfect Resin Prints
1. Level Your Build Plate
An unlevel build plate is the most common cause of print failures. Use the paper method: place a sheet of paper on the screen, lower the build plate, and ensure you feel slight resistance when pulling the paper. Tighten the screws while maintaining contact.
2. Optimize Orientation and Supports
Angle your model 30-45 degrees to reduce suction forces and improve detail reproduction on overhangs. Automatic supports in slicers like Chitubox or Lychee are a good starting point, but add heavy supports to the first contact points for reliability.
3. Temperature Matters
Resin viscosity changes with temperature. The ideal printing environment is 22-28°C (72-82°F). Cold resin flows poorly and may cause delamination. ANTINSKY HeatMixer-HM100 can help maintain consistent resin temperature during long prints.
4. Post-Processing: Wash & Cure
After printing, thoroughly wash your parts in isopropyl alcohol (IPA) or a dedicated resin detergent like ANTINSKY Resin Detergent 1.5KG — a safe, non-flammable alternative to IPA. Cure under UV light for 5-15 minutes depending on resin type and part thickness.
Recommended Resins for Different Applications
| Application | Recommended Resin | Why |
|---|---|---|

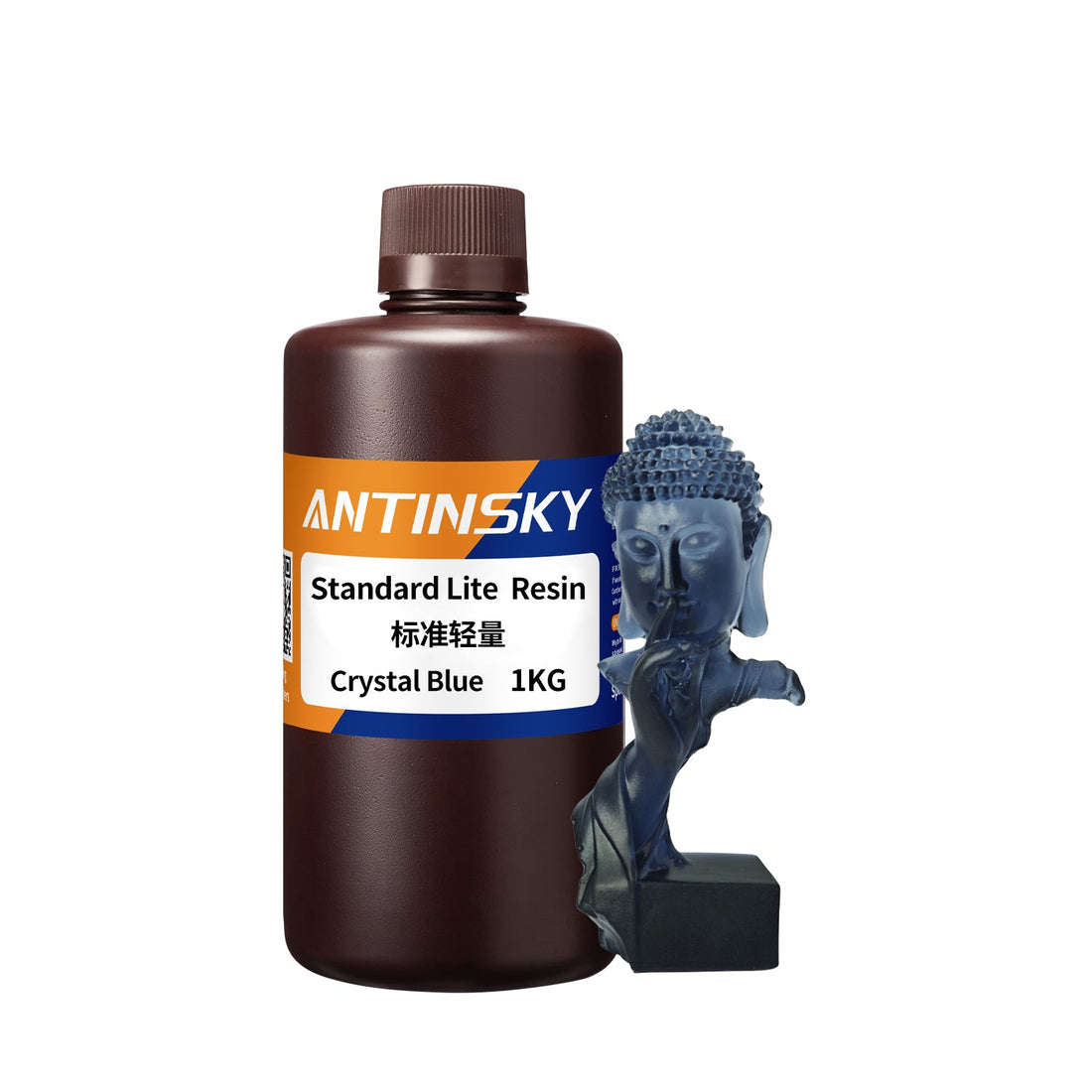

| Miniatures & Tabletop | ANTINSKY Standard Lite Resin | Low odor, high detail, affordable |
| Functional Prototypes | ANTINSKY Standard Tough Resin | Balanced strength and detail |
| Engineering Parts | ANTINSKY ABS-Like Resin | Impact resistant, matte finish |
| Dental Models | ANTINSKY Standard Dental Model Resin | Biocompatible, high precision |
| Jewelry Casting | ANTINSKY Castable Resin | Clean burnout, fine detail |
Common Resin Printing Problems & Fixes
- Layer separation / delamination → Increase normal exposure time by 0.5s
- Print sticks to FEP → Reduce bottom exposure or increase lift distance
- Blurry details → Check for loose Z-axis or dirty LCD screen
- Suction cup effect → Add drainage holes to hollow models
All ANTINSKY resins are available at InnoStation 3D's Resin Collection. Each bottle includes a QR code with manufacturer-verified printing parameters for smooth setup.
