Why Resin Prints Shrink — And What You Can Do About It
One of the most common questions from newcomers to resin 3D printing is: "Why doesn't my print measure exactly what I designed?" The answer lies in polymerization shrinkage. When liquid resin cures under UV light, the molecules crosslink and contract, causing the cured part to be slightly smaller than the model. Understanding this behavior is essential for achieving precise results — especially for functional parts, jewelry molds, and dental applications.
How Much Do Different Resins Shrink?
The shrinkage rate varies significantly by resin type. Here is what you can expect from ANTINSKY's popular resin range, available at InnoStation 3D:
| Resin Type | Typical Shrinkage | Best For |
|---|---|---|
| Standard Lite Resin | 3-5% | General prototyping, fast prints |
| Standard Resin | 3-4% | Balanced accuracy and detail |
| ABS-Like Resin | 2-3% | Impact-resistant functional parts |
| Dental Model Resin | 1-2% | Orthodontic models, surgical guides |

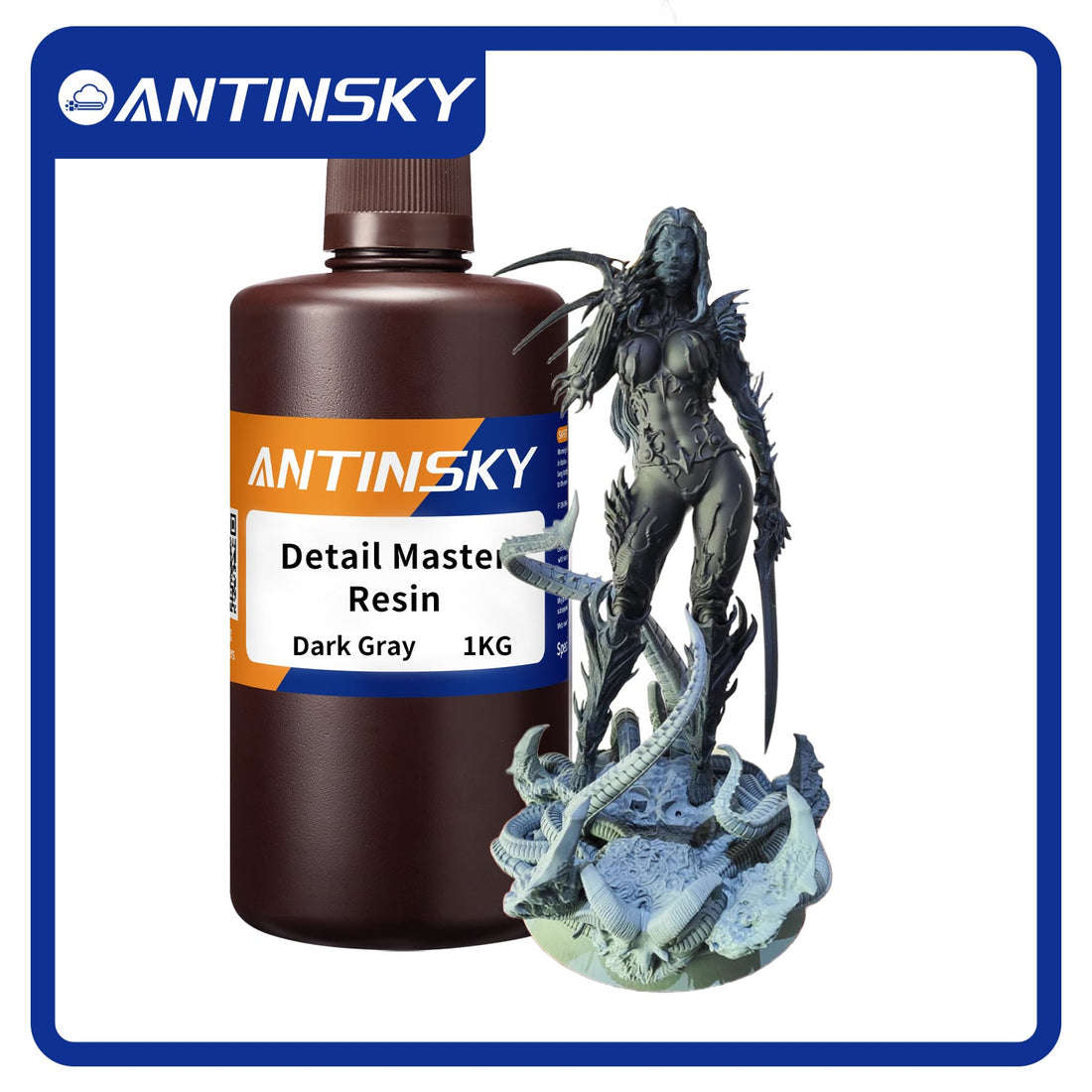

| Detail Master Resin | 2-3% | Miniatures, high-detail models |
Key Factors That Affect Shrinkage and Warping
1. Exposure Time and Layer Height
Over-exposing each layer causes more crosslinking, increasing shrinkage. Calibrate your exposure settings using an exposure test model. Start with the manufacturer's recommended parameters and fine-tune from there.
2. Resin Temperature
Cold resin (below 20°C / 68°F) is more viscous and cures differently, leading to inconsistent shrinkage. Warm resin to 25-30°C before printing.
3. Part Orientation and Supports
Flatter surfaces parallel to the build plate experience the most warping. Angling your model at 30-45 degrees reduces internal stresses and improves dimensional accuracy.
4. Post-Curing Shrinkage
Post-curing in a UV chamber continues the polymerization process. While this strengthens the part, it can also cause additional shrinkage (0.5-2%). Always design with post-cure shrinkage in mind, especially for precision applications.
Practical Tips for Minimizing Shrinkage
- Run a calibration print — Use the XP2 Validation Matrix before each new resin type.
- Orient hollow parts with drainage holes — Reduces suction forces and prevents internal stress buildup.
- Use the right resin for the job — For dimension-critical parts, choose low-shrinkage formulations.
- Allow parts to rest after washing — Let freshly washed parts sit for 15-30 minutes before post-curing.
Conclusion
Resin shrinkage is a physical reality of photopolymer 3D printing, but it can be managed and even predicted. Explore the full range of ANTINSKY Standard Resins and professional grades at InnoStation 3D — all tested for consistent performance across popular LCD printers.
