There is a quiet assumption buried in most 3D printing advice: that a part is finished the moment it comes off the plate, and that if you need two parts joined, you glue them and forget about them. That works right up to the point where you need to open the enclosure to replace a battery, or swap a worn insert, or ship a flat-pack kit that a customer has to assemble without instructions.
Then the joint has to do something harder than hold. It has to hold, let go on demand, and hold again. Those are conflicting requirements, and the way most makers discover the conflict is by hearing a satisfying click on the first assembly and a dull snap on the fourth.
This guide is about the detachable end of the spectrum. Not adhesive bonds that are meant to be permanent, but joints designed to be opened and re-closed: snap fits, press fits, tapered and keyed interfaces, and the co-moulded fasteners you bury inside a print mid-layer.
Why detachable joints fail differently than bonded ones
A bonded joint fails when the adhesive or the substrate reaches its limit. A detachable joint usually fails before that, for a subtler reason: it is designed to deflect, and every deflection cycle spends a little of the material's remaining elasticity.
Three distinct failure modes live in that gap, and they are worth separating because the fix for each is different.
| Failure mode | What actually happens | Where you see it | The real fix |
|---|---|---|---|
| Over-strain on first assembly | The cantilever or hoop is bent past its elastic limit and takes a permanent set. Subsequent assemblies are loose | First or second cycle, always one-directional | Reduce the required deflection by redesigning the interlock, or change the material |
| Creep under sustained load | A permanently loaded detent slowly relaxes and stops holding, even with no cycling at all | Weeks to months, worse when warm | Do not rely on continuous preload. Add a mechanical stop so the load path is not the spring |
| Fatigue at the root | A crack initiates at the fillet where the beam meets the body and propagates across the layer lines | Dozens to thousands of cycles, always at the fillet | Radius the root, orient the part so layers run along the beam, and lower the stress per cycle |
Notice that none of these are solved by choosing a stronger filament. A stiffer material raises the stress for the same deflection, and if the deflection is fixed by the geometry, that makes over-strain and fatigue worse, not better. The lever is almost always geometry.
Layer lines change the rules of a snap
Injection-moulded snap fits are a solved engineering problem, which is exactly why copying the numbers out of a moulding handbook goes wrong on a 3D printer.
An FDM part is not isotropic. Its interlayer strength is a fraction of its in-plane strength, and the fraction depends on material, temperature and layer height. A cantilever latch that is printed standing up has its layers running perpendicular to the bending stress, which means the fillet at the root is a stack of weakly bonded interfaces loaded in peel. That is the single worst orientation for a snap, and it is also the orientation most people choose because it avoids supports.
The practical rule: a cantilever should be printed flat, so the flexing beam is continuous material and the stress runs along the extrusion direction rather than across layer lines. If the part's shape forces you to print it standing, treat the available strain as roughly half and add the fillet anyway.
The second consequence is dimensional. Layers do not stack perfectly; they bulge. A printed snap feature comes off the plate slightly larger in the build direction and slightly wider at the seam than the CAD model says. That is why a snap that measured correctly on screen binds on the first click, and why the same file behaves differently on a machine with a different flow calibration.
Snap fits: the strain budget is the whole design
A snap fit works because a plastic beam bends and springs back. The engineering question is only ever: how much strain does this geometry demand, and can the material supply it without yielding?
Strain in a snapping cantilever scales with the deflection you need and the beam thickness, and falls with the square of the beam length. In plain terms: long and thin is forgiving, short and thick is not. Designers often make the latch stubby for a satisfying feel and accidentally push the peak strain past the limit.
Use the table below as a starting budget, not a specification. The numbers are conservative on purpose, because printed parts have stress concentrations at layer boundaries that moulded parts do not.
| Filament | Usable peak strain per snap cycle | Behaviour on repeated opening | Where it earns its place |
|---|---|---|---|
| PLA and PLA+ | About 1.5 to 2 percent | Stiff and strong once, then the beam takes a set and the click disappears. Poor at repeated cycles | Lids and covers opened a handful of times over the part's life |
| PETG | About 3 to 4 percent | The stand-out choice. Bends further before yielding and springs back with less permanent set | Any latch that a user opens regularly |
| PETG-CF | About 2 to 2.5 percent | Stiffer than plain PETG, so it holds tolerance better but tolerates less deflection. Strain limit drops as often as strength rises | Latches that need dimensional stability and only see occasional use |
| ABS and ASA | About 2.5 to 3 percent | Good fatigue behaviour and it creeps less than PETG when warm, but it needs an enclosed printer to be reliable | Latches in warm environments or outdoors |
| ABS-CF and ASA-CF | About 2 percent | Very stiff and dimensionally stable, but brittle in a snap. Fibre loading cuts elongation at break hard | Precision detents where the deflection is tiny and defined by a hard stop |
| TPU at 95A | Above 10 percent | Will not break from bending, but it also will not hold a hard click. It deforms instead of releasing | Grip pads, seals and over-travel; pair it with a rigid body |
| PC-type blends | About 4 to 5 percent | The best fatigue performer of the common desktop materials, with the highest temperature ceiling | Latches that must survive thousands of cycles |
The pattern in that table is worth saying out loud: strength and snap performance are close to opposites. The materials that make the stiffest brackets are the ones that make the worst latches. If you want a latch that still clicks on the five-hundredth opening, you want a tough material with modest stiffness, printed so the beam is continuous.
For the underlying mechanics of stiffness and interlayer strength, the guidance in strong parts are designed before they are sliced and in part strength fundamentals and inter-layer bonding applies directly at the fillet, which is where almost all snap failures originate.
A cantilever that survives the tenth opening
Four details separate a latch that works once from one that keeps working.
- Radius the root generously. The fillet where the beam meets the wall is the stress concentration and the fatigue initiation site. A radius equal to half the beam thickness is a reasonable minimum, and it costs nothing in CAD.
- Never let the beam bend to its limit in service. Put a hard stop behind the deflection so the operator physically cannot over-bend it. The stop carries the abuse; the beam only carries the click.
- Lead the insertion with a ramp. A shallow lead-in angle lets the beam deflect gradually as the mating part slides home. A steep face means the entire deflection happens at once, at the worst possible moment.
- Give the retraction face a reason to hold. The angle that lets the joint close is the same angle that lets it open. A shallow lead-in paired with a near-vertical retention face is the classic asymmetric profile, and it produces a joint that assembles easily and resists being pulled apart.
Press fits: deciding between friction and yield
The press fit is the simplest detachable joint and the easiest to get wrong, because it hides a choice you may not know you are making.
There are two fundamentally different mechanisms. A friction fit stays in the elastic range: the parts interfere slightly, the material deflects, and the resulting elastic force holds them together. It is reversible. A yield fit pushes the material past its yield point, so the pin or the boss is permanently swaged into place. It holds enormously well and it is not reversible, no matter how much the phrase press fit suggests otherwise.
Deciding which one you want is the design decision. If the joint will be opened again, you want the interference small enough to stay elastic, and you should expect the holding force to settle after the first few assemblies as the surfaces bed in.
| Material of the receiving part | Starting diametral interference | What to watch |
|---|---|---|
| Rigid and brittle (PLA+, ABS-CF, ASA-CF) | About 0.05 to 0.10 mm | Almost no elastic range. The same interference that holds in PETG will crack a boss here |
| Tough and semi-rigid (PETG, ABS, ASA) | About 0.10 to 0.20 mm | The forgiving band. Still verges on yield at the top of the range |
| Compliant (TPU, PEBA) | About 0.30 to 0.60 mm | Will conform rather than crack, but stored energy means creep is the long-term enemy |
Two cautions that come up constantly. First, a press fit is not a good way to locate a part precisely. Interference is an uncontrolled fit, so the final position wanders by roughly the interference amount plus the printer's own tolerance. Where position matters, use a shoulder or a hard stop to define it and let the interference only supply the force.
Second, never press a rigid insert into a rigid hole and call it reversible. That is a permanent assembly with extra steps. The generic mechanics of sizing holes and clearances across materials are covered in tuning dimensional accuracy and tolerances and in how to get dimensionally accurate parts, both of which apply directly to choosing an interference value.
The single highest-leverage habit here is to print a test coupon. Print a strip of pins at 0.05, 0.10, 0.15 and 0.20 mm interference in the actual material, on the actual machine, with the actual nozzle, and find out which one is snug and reversible. It takes twenty minutes and it replaces every guess in the sections above.
Tapered and keyed interfaces: letting the geometry do the work
Whenever a joint can be made easier to assemble without weakening it, taper is the reason. A tapered pin, a conical boss or a dovetail slide all convert a difficult alignment problem into a self-guiding one.
A dovetail or T-slot is particularly well suited to printed parts. It is a sliding joint, so it never requires deflection, which means it does not consume the material's elasticity at all. It has no strain budget to exhaust. The entire design effort moves to the fit, and that is a much more tractable problem than fatigue.
A practical detail that saves a lot of frustration: make the sliding fit slightly loose on the first prototype, then tighten it in 0.05 mm steps. Printed sliding joints tend to be tighter than intended, because the layer bulge mentioned earlier reduces the effective clearance on the load-bearing faces. If the dovetail has to resist being pulled apart, cut the joint so a small amount of material is on both sides of the load direction, not so the load simply slides the two parts apart.
Fasteners you bury in the print: heat-set inserts and captive nuts
For joints that must open many times, the most robust answer is often a metal thread. Two approaches dominate, and the choice depends on whether you want strength or repairability.
A heat-set insert is a threaded brass bush pressed into a slightly undersized printed hole with a soldering iron. The plastic softens, flows around the knurled barrel and locks it in place. The result is a permanent, strong metal thread in a printed body. The trade-off is that the insert is only as good as the wall around it: a boss that is too thin splits during installation, and one that is too close to an edge bulges the wall when it warms.
A captive nut or captive bolt is the opposite bet. You design a pocket that opens to one face, drop the nut in mid-print or slide it in from the side, and the nut is mechanically trapped with no heat and no plastic deformation. It is weaker than a heat-set insert for the same boss size, but it never damages the surrounding material and it can be replaced if the thread strips.
Burying hardware means pausing the print, which brings its own failure modes. The classic amateur mistakes are installing the insert while the surrounding plastic is still soft enough to deform, and forgetting that a heat-set insert has to go into a hole that is deliberately smaller than itself. Measure the insert with calipers and size the hole to the vendor's recommendation rather than to the insert's outer diameter.
The filament choice matters more than usual here. A boss that holds a heat-set insert sees both heat and hoop stress, so a material with a decent temperature ceiling is a better bet than a material chosen for looks. The comparison across the engineering grades is set out in which engineering filament earns the spool cost.
Designing for the tenth opening, not the first
The single shift that turns a fragile joint into a serviceable one is deciding, up front, how many times it needs to open. That number drives everything else.
- Write down the cycle count. Once at the factory, ten times in the field and a thousand times are three different joints.
- Pick the mechanism from the cycle count. Slides and screws for high counts, press fits for low counts, snaps in between.
- Set the strain per cycle from the material table, then halve it. Print defects do not appear in a data sheet.
- Add a hard stop so the operator cannot overload the mechanism.
- Radius every root and fillet every load transition.
- Print the part in its service orientation so the layer boundaries are not loaded in peel.
- Print a coupon with at least three interference values and cycle each one ten times by hand.
- Inspect the coupon at the fillet with a magnifier for whitening or a visible crack before you commit to the design.
That last step is the one people skip, and it is the one that catches the problem while it is still free to fix.
What to do when the joint is asked to be permanent again
Half the difficulty in detachable design comes from the fact that not every joint should be detachable. A structural bracket that is never meant to come apart is better bonded, welded or bolted through than clicked. The failure mode of an over-designed snap is that it opens at the wrong moment, usually under vibration, usually when the part is in service.
So the useful question is not how to make every joint removable, but which ones genuinely need to be. Anything that will be opened to service a wearing component, to access a consumable, to adjust a fit, or to ship flat, belongs in the detachable camp. Anything whose entire job is to carry a static load belongs in the permanent camp, and the techniques there are covered in gluing 3D printed parts and in the dimensional guidance in strong parts are designed before they are sliced.
Where a joint has to do both, the answer is usually a mechanical stop plus a light retention feature. The stop carries the structural load, so the retention feature is never loaded enough to creep or fatigue, and it only has to survive being unclipped. That division of labour is the same reason a good hinge separates the pin that carries the load from the detent that holds the angle.
Putting it together
Detachable joints are not a compromise between a good joint and a convenient one. They are a different engineering problem, and once you treat them that way the design gets easier, not harder.
The hierarchy is consistent. Geometry decides the strain, the strain decides the material, and the cycle count decides which mechanism you are even allowed to use. Get the mechanism right and the fillet radius right, and a printed latch will hold and release for a very long time. Get the mechanism wrong and no filament on the shelf will save it.
For makers who print a mix of one-off parts and small runs, the practical workflow is to keep a small calibration library: a snap coupon in PETG, a pin set in the two materials you use most, and a heat-set insert test boss. It is the same argument as keeping a tolerance test piece on hand. Twenty minutes of printing buys certainty on every joint that follows.

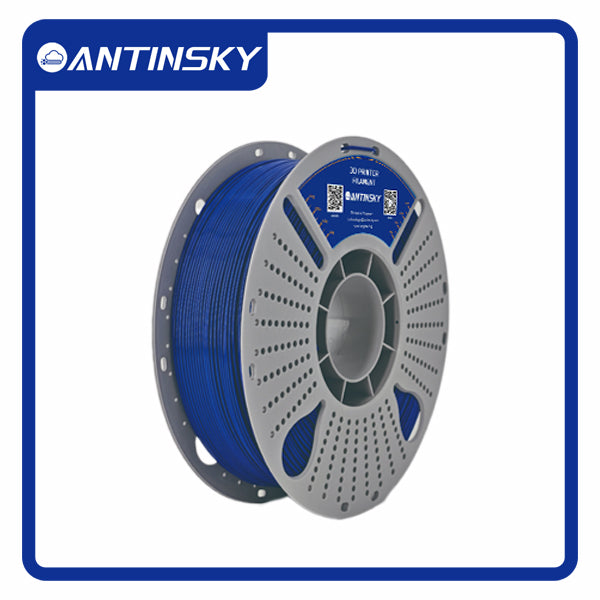

A good place to start building that library is with a material that has real elastic range. PETG filament is the default answer for latches that see regular use, while PETG-CF suits detents where stiffness and dimensional stability matter more than deflection. Where a joint has to survive heat as well as cycles, ASA and its carbon-filled variant are the more durable choice. And for the hardware that turns a printed boss into a real fastener, a hardened nozzle paired with a well-sized heat-set insert covers the vast majority of serviceable designs.
Design the joint for the tenth opening. The first one is easy.
