Most printers ship with generic extrusion settings. That is why your corners bulge, your seams look like stacked dots, and flat tops come out rough. Two calibrations — pressure advance and flow — fix all three, and they work on every common filament once you understand how each material behaves.
What Pressure Advance Does
When the extruder speeds up, plastic builds pressure in the hotend and keeps oozing after the move ends; when it slows down, the nozzle can starve for a moment. Pressure advance (often called Linear Advance or K-factor) compensates by feeding slightly early when accelerating and pulling back a hair when decelerating. The result is tight corners with no bulging and seams you barely notice.
Signs your K-factor is off
- Wide, blobby corners on square models
- Thick, raised dots at the seam where each layer stops
- Underextrusion at the start of long moves
- Sharp features rounding off instead of staying crisp
Flow Calibration: Calibrate Before K
Tune flow first, because pressure advance depends on it. Use a single-wall cube and adjust flow until the wall is exactly 0.4 mm (or your set line width). Once flow is right, move to K-factor. Smaller K means an almost-passive filament; bigger K means a springy one.
| Filament | Typical K-factor start | Flow note |
|---|---|---|
| PLA / PLA+ | 0.02–0.10 | Tight tolerance, forgiving |
| PETG | 0.04–0.12 | Slightly higher, watch stringing |
| ABS | 0.05–0.15 | Needs stable chamber temperature |
| TPU | 0.10–0.30 | High K; use a direct-drive setup |
A Step-by-Step Tuning Routine
- Calibrate flow with a two-wall or single-wall cube until walls match the set line width.
- Print a K-factor test pattern (a series of short pauses or acceleration ramps) and read the value that gives the cleanest transition.
- Save the K value per material — never share K between PLA and TPU.
- Re-check flow after changing nozzle size; 0.4 to 0.6 mm changes everything.
- Test at the speed you actually print. If you print 150 mm/s, tune at 150 mm/s, not at 60.
A cleaner seam on top of tuning
Even with correct K, you can improve seam quality further:
- Choose a random or nearest seam position to hide joins.
- Use wipe or a short coast to reduce the blob at layer transitions.
- For flat tops, add a final ironing pass at low speed.
Setting up the test correctly
The K-factor test needs a straight wall between two rapid moves so the nozzle has to accelerate, then stop and reverse. Let the firmware or slicer script that segment and watch the transition point. If the corner is rounded, K is too low; if it bulges into a blob before the wall, K is too high. Read the number printed beside the cleanest segment and store it against the filament profile.
Common mistakes to avoid
- Tuning at a different speed than you print — K is speed-dependent.
- Reusing one K for every material — stiff PLA and springy TPU need very different values.
- Editing K while flow is still wrong — the two fight each other; flow always comes first.
Material-Specific Notes
Tuning is the same, but each material needs care in its own way:
- PLA/PLA+ calibrates fastest; a low K and slight flow reduction on first layers prevents elephant's foot.
- PETG strings under high pressure advance — go gently, increase retraction only a little, and dry it first.
- ABS wants an enclosed, warm chamber so the K-value stays consistent as the part cools.
- TPU has the highest K and needs a direct-drive extruder; too-low K makes soft, sloppy corners.

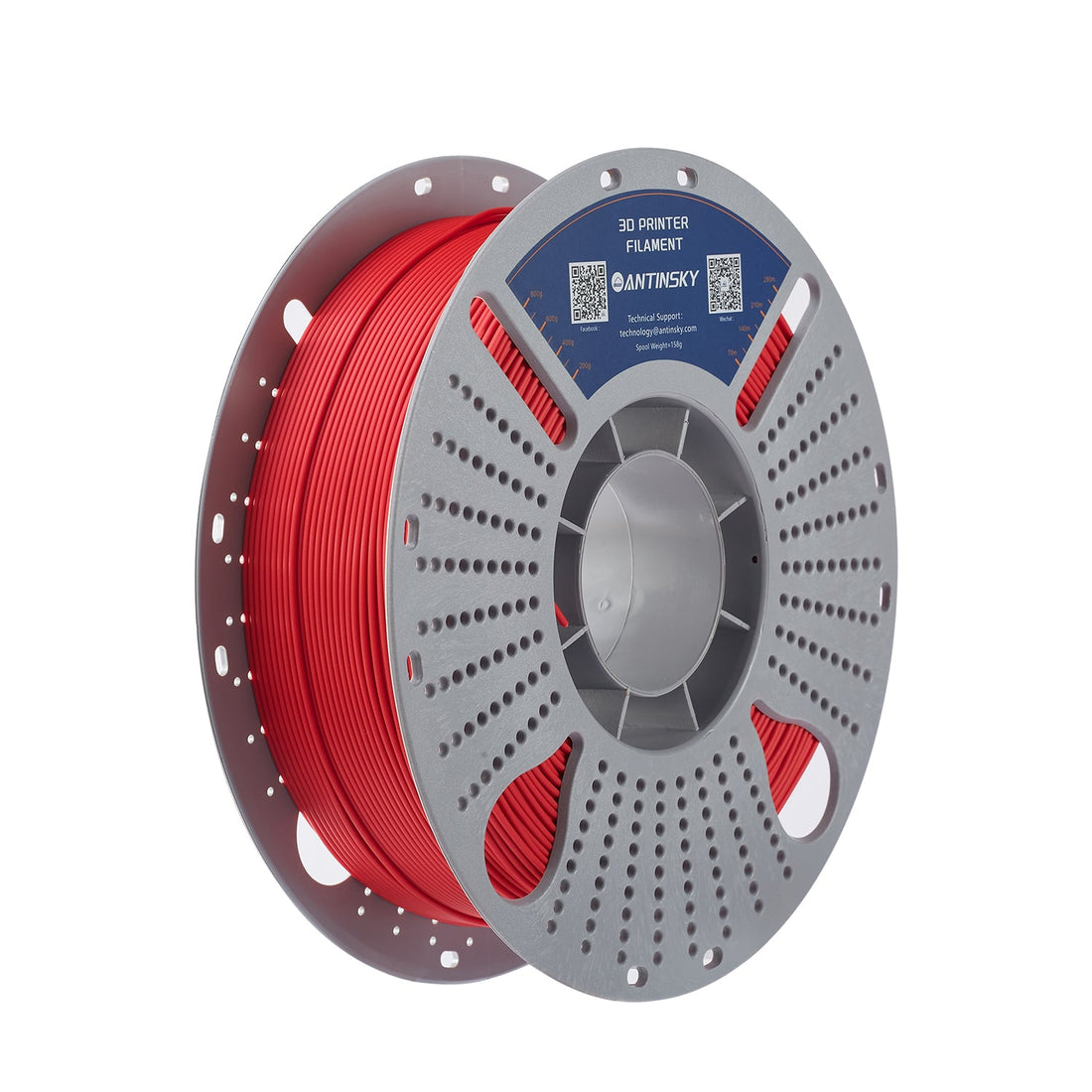

Once your printer is tuned, the same calibration works no matter which spool you grab. For clean, predictable baseline behaviour, the ANTINSKY PLA+ Filament is an easy first tune-up, with PETG for tough parts, ABS for strength and heat, and flexible TPU when you need soft-touch parts. All are stocked, together with the accessories your tuned setup needs, at innostation3d.com.
