One of the most rewarding upgrades in resin printing is not a new printer – it is learning the settings that control sharpness. Two prints from the same machine can look generations apart, simply because of bottom layers, anti-aliasing and grey-scale rendering. In this guide we break down each setting, how it affects your print, and how to tune it on a modern monochrome LCD printer.
Why Sharpness Matters
Over-cured edges look swollen and rounded; under-cured geometry looks soft and fragile. The firmware and slicer settings below decide exactly how much light each pixel lets through, which translates directly into how crisp your final part looks.
1. Bottom Layers: Building a Solid Foundation
The bottom layers are exposed for much longer than normal layers so the first printed layers bond firmly to the build plate. Their job is adhesion, not resolution – so keep the count low unless you are fighting adhesion failures.
| Platen / Model size | Recommended bottom layers | Typical bottom exposure |
|---|---|---|
| Small models (miniatures) | 4–6 | 25–35 s |
| Medium models | 5–7 | 30–40 s |
| Large, heavy models | 6–8 | 35–45 s |
Tip: More bottom layers are NOT better for sharpness. They only thicken the sacrificial block at the base, which you will cut away anyway. Only raise them to fix adhesion.
2. Anti-Aliasing: Smoothing the Pixel Stairs
An LCD screen exposes through square pixels, so diagonal lines can look jagged unless the printer smooths them. Anti-aliasing (AA) reduces those steps by partially curing edge pixels or by firmware-level grey-shading. The result is noticeably smoother curves and fewer visible layer-sized steps on angled surfaces.
A moderate AA level (e.g. 3×3 or 4×4 on most slicers) balances smoothing with print time. Too little AA leaves jagged edges; too much can soften fine detail. Start around 4×4 and adjust one step at a time.
3. Grey-Scale Rendering: Precise Edge Control
Grey-scale goes a step further than simple anti-aliasing. Instead of only controlling how many pixels are exposed, the printer varies the light intensity per pixel. A grey gradient at the edge of a feature cures up to an intermediate depth, producing smoother shoulders and finer detail than binary on/off pixels can achieve.
Step-by-Step Tuning Checklist
- Print a calibration model that includes fine text and angled edges.
- Set bottom layers to 5 and tune bottom exposure only for adhesion.
- Enable anti-aliasing at 4×4 and note the smoothness on curves.
- Confirm grey-scale is enabled in the printer’s firmware if supported.
- Re-print and compare shoulder sharpness and fine text legibility.
Pairing Sharpness With the Right Resin

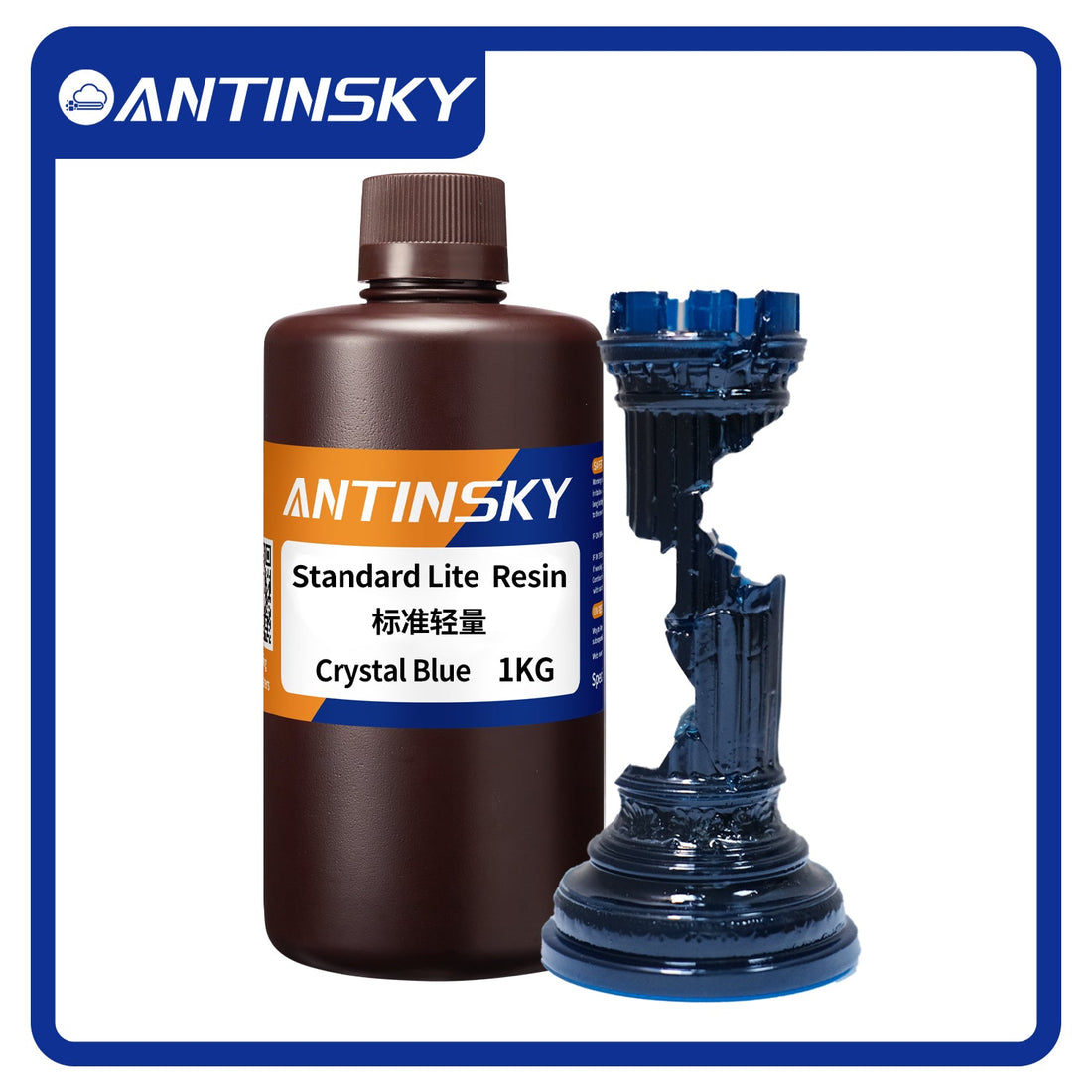

Settings only matter if the resin cooperates. A resin with consistent, dimensionally stable curing gives the crispest edges because light is absorbed predictably. The ANTINSKY Standard Lite Resin 1kg is a translucent, easy-printing resin that shows off clean edges and low viscosity, ideal for testing sharpness settings. For high-detail jewellery or dental work, the ANTINSKY Standard Resin 1KG provides a smooth, reliable build.
Common Sharpness Issues and Fixes
| Problem | Likely cause | Fix |
|---|---|---|
| Fat, rounded edges | Over-exposure | Lower normal layer exposure time |
| Jagged diagonal lines | Anti-aliasing off / too low | Enable or raise AA level |
| Soft, mushy fine detail | Grey-scale/AA too aggressive | Reduce AA one step |
| Detail lifts off plate | Too few bottom layers | Add 1–2 bottom layers |
Conclusion
Sharp resin prints are rarely about expensive hardware – they come from understanding bottom layers, anti-aliasing and grey-scale rendering. Set bottom layers for adhesion, tune anti-aliasing to your model, and let a consistent resin do the rest. Spend one session calibrating and every future print will be visibly crisper.
