Ask anyone who has snapped a 3D-printed part and they will show you the fracture along a layer line. Understanding inter-layer bonding and part orientation is the difference between parts that feel like toys and parts that genuinely carry load. Here is what is actually happening at the layer boundary, and how to choose the right material and orientation for strength.
The Anatomy of a Weak Spot
An FDM print is built from thin, stacked roads of molten plastic. Each new layer must fuse with the one below it. That fusion depends on how much heat is still available when the next layer lands and how tightly the overlapping material bonds.
The X-Y strength of a part (across one layer) is usually higher than its Z strength (between layers) because X-Y layers are continuous, while Z joins are thermal fusions between separate passes. That single fact drives most strength failures.
Inter-Layer Bonding by Material
Different polymers fuse better at their respective print temperatures. The more heat flowing into a fresh layer, the deeper and stronger the weld to the layer below.
| Material | Layer bond strength | Best fusion practice |
|---|---|---|
| PLA | Good | Keep nozzle within spec, avoid over-cooling |
| PETG | Good, sticky | Slightly lower fan, higher hotend temp |
| ABS | Excellent when kept warm | Enclosure or warm chamber |
| TPU | Flexible, bonds well | Slow speed, low fan |
Why Temperature and Cooling Matter
Layer bonding is essentially a welding process. If the hotend temperature is too low, the polymer does not flow hot enough to fuse deeply. If the part cooling fan is on full for a brittle material like PLA, each layer cools before the next can weld to it, leaving weak seams. For each material you should find the window where the layer stays warm long enough to fuse, but cool enough to keep its shape.
Orientation: The Cheapest Strength Upgrade
Because Z strength is lower than X-Y strength, you should orient a part so that the direction of load runs across printed layers, not along them.
- Load pulling parts apart (tension along the height) – print so layers run across the load path.
- Overhangs or bridging – reorient to shorten unsupported spans rather than add supports.
- Bolt holes under shear – orient the hole axis so shear acts across strong X-Y layers.
Choosing the Strongest Material for the Job
| Use case | Best choice | Why |
|---|---|---|
| General-purpose, strong, easy | PLA+ | Stiff, cheap, great layer adhesion |
| Outdoor / mechanical wear | PETG | Ductile, impact-resistant, weather-friendly |
| High heat / automotive | ABS | Bonds superbly when enclosed |
| Flexible, gaskets, grips | TPU | Elastic, tough |

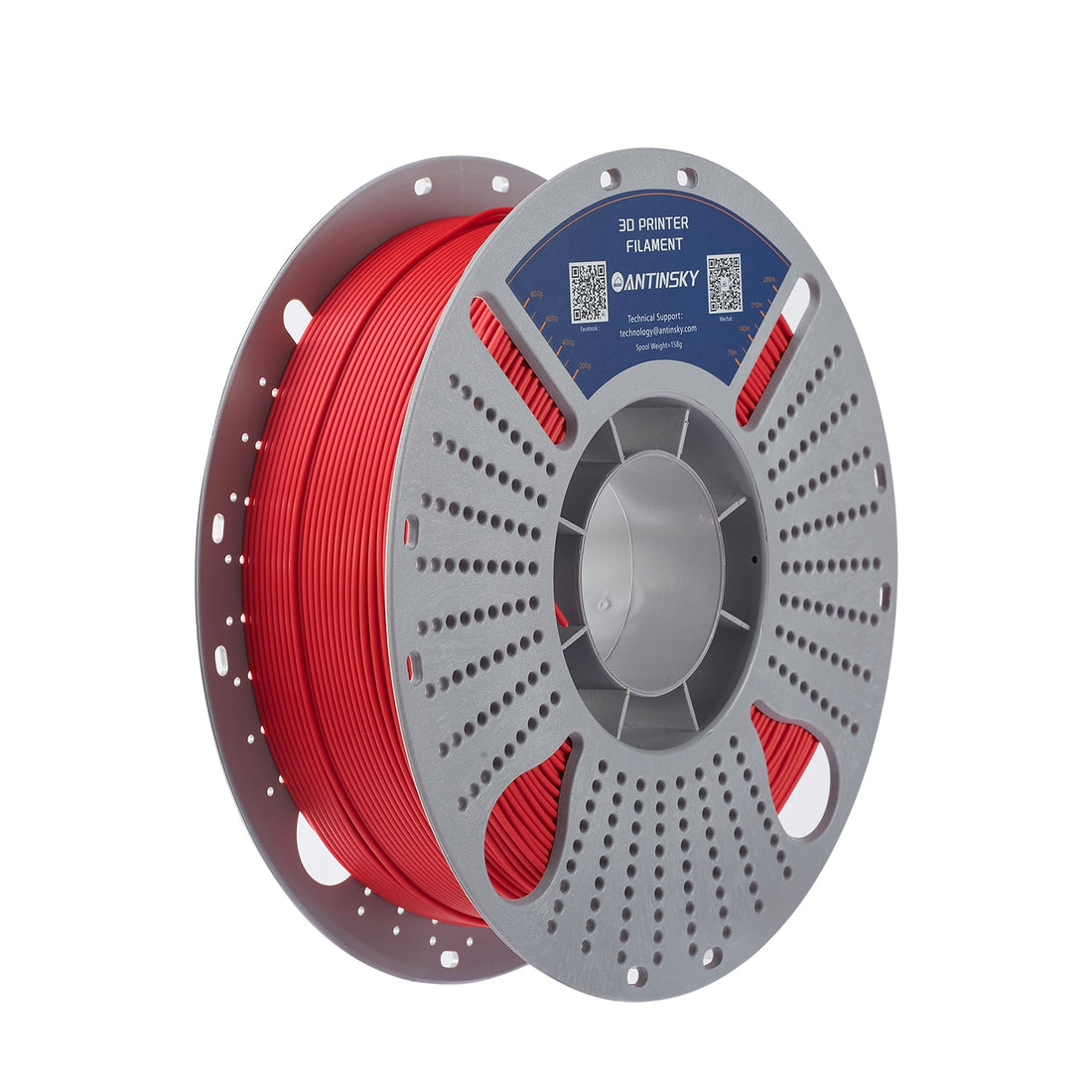

All of these are available at InnoStation 3D: ANTINSKY PLA+ Filament, ANTINSKY PETG Filament, ANTINSKY ABS Filament, and ANTINSKY TPU 85A Filament.
Other Strength Boosters
- More walls – extra perimeters add much more strength per gram than extra infill.
- Correct infill density – 15–30% for most parts, more for load-bearing faces.
- Keep it dry – wet filament reduces fusion quality and causes weak, brittle parts.
- Good first layer – a solid, well-adhered base prevents delamination starting at the bottom.
Conclusion
Strong FDM parts come from respecting layer mechanics. Choose a material whose fusion temperature you can reliably hit, orient parts so loads cross the layers, and add walls before infill. Do those three things and your prints will stop failing at the layer line and start acting like proper engineering parts.
